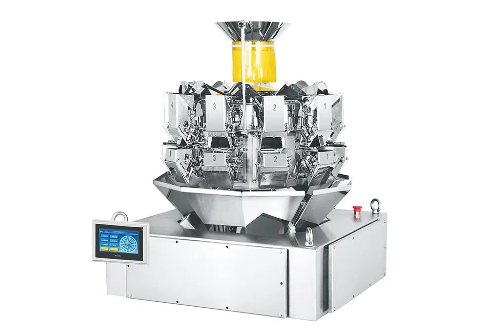

In modern packaging environments, achieving high accuracy while maintaining speed and efficiency is critical. Whether it’s food, small parts, or consumer goods, consistent weight across all packages is essential for customer satisfaction, legal compliance, and cost control. Among the many weighing solutions available today, the 14 heads multihead weigher stands out as one of the most balanced and reliable options. It combines intelligent design with advanced features to deliver exceptional weighing accuracy, even in demanding production lines.
This article explores the key features that make the 14 heads multihead weigher an ideal choice for manufacturers who need precision, speed, and flexibility in one machine.
The most fundamental reason for the 14-head weigher’s high accuracy is its combination weighing principle. Instead of relying on a single weighing unit, the machine uses fourteen separate weighing heads to measure small portions of product. A central processor then quickly calculates the best combination of weights from these heads that adds up closest to the target weight.
This method drastically improves the chances of achieving near-perfect weight with minimal error. With more heads involved, the number of possible combinations increases significantly. As a result, the system is able to choose the most optimal grouping of hoppers, which reduces the chance of overweight or underweight packs.
For example, when packing 100 grams of snack food, the machine may find that combining the contents of heads 2, 5, and 11 results in a total weight of 100.03 grams—a margin of error that is virtually negligible.
Speed is another strength of the 14-head weigher. Thanks to its multi-head design and smart weighing algorithm, it can complete over 100 weighments per minute in many applications. However, what’s more impressive is that this speed doesn’t come at the cost of accuracy.
This is achieved through precise control of the entire weighing cycle. Products are fed into the machine steadily, distributed evenly into each head, and discharged only when an ideal combination is found. The coordination between feeding, weighing, and releasing is seamless, allowing the machine to run quickly while maintaining consistent weight precision.
For high-volume manufacturers, this means fewer bottlenecks and more reliable output.
Each weighing head in the system is equipped with a load cell, which is a sensor that measures the weight of the product portion in that hopper. In the 14-head multihead weigher, these load cells are designed with high sensitivity and stability. They can detect very small differences in weight—sometimes less than a tenth of a gram.
This level of precision ensures that each hopper provides accurate data, which is crucial for the combination process. In addition, many models come with automatic calibration features that keep the load cells working at optimal accuracy throughout long shifts or changing production conditions.
High-quality load cells contribute significantly to reducing weight variation and maintaining long-term consistency.
Another feature that supports precise weighing is the machine’s modular design. Each head operates independently, both in terms of weighing and feeding. This means that adjustments can be made to individual heads without affecting the performance of the others.
If a particular head becomes clogged or requires maintenance, it can be taken offline temporarily while the rest of the system continues to operate. This ensures that minor issues don’t interrupt the entire production process.
The independent control also allows for fine-tuning based on the product type. Sticky or fragile items, for instance, may need slower feed rates in specific heads, which can be configured accordingly.
Accurate weighing begins with consistent feeding. To ensure that each weighing hopper receives a steady and correct amount of product, the 14-head weigher uses vibratory feeders that transport material from the top cone into the individual heads.
These feeders are fully adjustable in terms of vibration intensity and duration. Products that flow freely, like sugar or seeds, can be handled with quick, light vibrations. On the other hand, sticky or irregularly shaped items like dried fruit or pasta may need stronger or more controlled vibration to move smoothly without clogging.
This ability to fine-tune the feeding process reduces variation in the amount of product delivered to each head, which in turn improves the precision of the weighing operation.
The brain of the multihead weigher lies in its software. This is where all the data from the load cells, feeders, and sensors is collected and processed in real time. The system continuously analyzes the weight in each head, adjusts the feeding cycles, and determines the most optimal combination for each discharge.
Advanced models include learning algorithms that adapt to product characteristics over time. For instance, if the product is sticky or inconsistent in shape, the software may adjust feeder timings automatically to improve flow and weighing reliability.
The software also alerts operators to potential issues, such as when a feeder is blocked or a head is underperforming. This keeps the system running smoothly and helps maintain accuracy throughout the production day.
Some 14-head models include memory hoppers—secondary hoppers that temporarily store product that isn’t used in the current weighment. These memory hoppers can then be used in future combinations, improving the chance of reaching the exact target weight.
This feature is particularly useful when weighing products that are uneven in size or weight, such as nuts, candies, or frozen vegetables. The presence of memory hoppers enhances the flexibility of the machine and helps reduce waste and overfill.
Timing hoppers, which ensure that product is discharged precisely when the packaging machine is ready, also contribute to smoother operation and better synchronization with downstream equipment.
Despite its technical complexity, the 14-head weigher is designed with simplicity in mind for operators. Most models feature a touchscreen interface with a logical menu layout, allowing operators to monitor weight performance, adjust settings, and run diagnostics with minimal training.
Product recipes—pre-set configurations for different materials—can be stored in the system. Switching from one product to another is quick and easy, with the machine automatically adjusting feeder intensity, weighing speed, and target weights based on the selected recipe.
This reduces setup time and minimizes the chances of manual error, which is often a cause of weight variation in less advanced systems.
To maintain long-term accuracy, cleanliness is essential—especially in food and pharmaceutical applications. The 14 heads multihead weigher is typically constructed from stainless steel and designed with smooth, easy-to-clean surfaces. Many models meet IP65 or IP66 standards for water and dust resistance, making them suitable for wash-down environments.
The hygienic design helps prevent material buildup, which could otherwise affect weighing accuracy. Removable contact parts further simplify cleaning and routine maintenance, ensuring the machine continues to perform at peak precision over time.
One of the most practical advantages of the 14-head weigher is its ability to handle a wide variety of products. From light and granular items like sugar and seeds to irregular or sticky goods like candies and meat pieces, this machine is adaptable to nearly any material.
With a few adjustments to software settings and feeder configurations, the same machine can switch between very different products while maintaining a high level of accuracy. This makes it a cost-effective solution for manufacturers who produce a diverse product range.
In modern packaging lines, no machine works in isolation. The 14-head weigher is designed to integrate seamlessly with other equipment such as form-fill-seal machines, pouch packers, and tray loaders. It synchronizes its discharge timing with the packaging cycle to ensure smooth, continuous operation.
Additionally, it can be connected to checkweighers, metal detectors, and reject systems for added quality assurance. These integrations help catch errors early and ensure that only correctly weighed and inspected packages reach the end customer.
The 14 heads multihead weigher is a highly advanced yet operator-friendly machine that delivers exceptional weighing accuracy across a broad range of applications. Its intelligent combination system, sensitive load cells, adaptable feeders, and real-time optimization software work together to provide consistent and precise results—even at high production speeds.
More than just a weighing tool, it represents an integrated part of today’s automated production systems, reducing product loss, increasing efficiency, and improving overall product quality. For manufacturers aiming to meet high standards while keeping costs under control, the 14-head multihead weigher is a smart and reliable investment.
